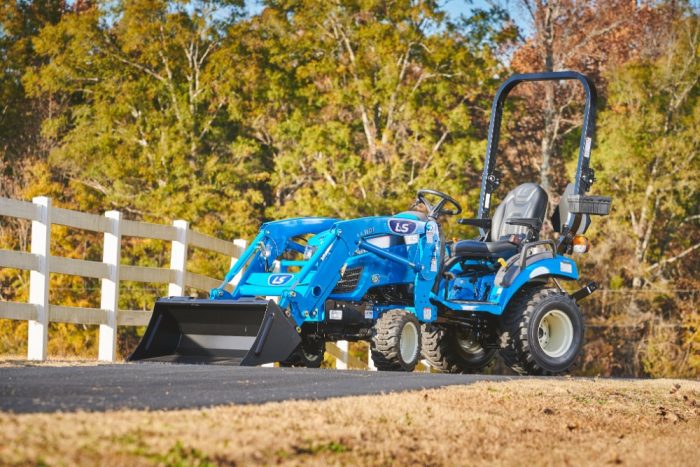

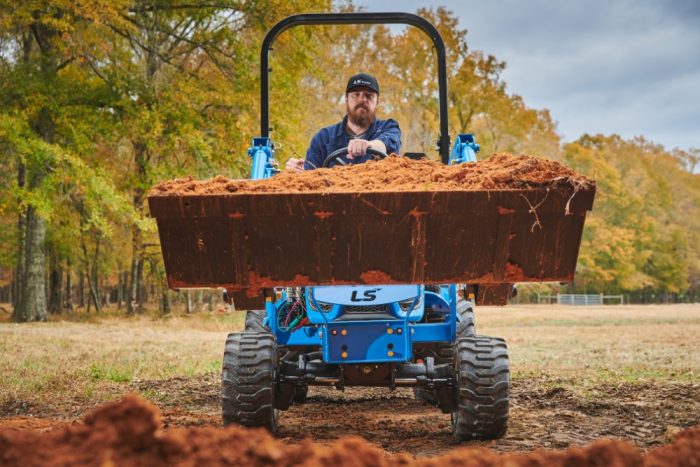

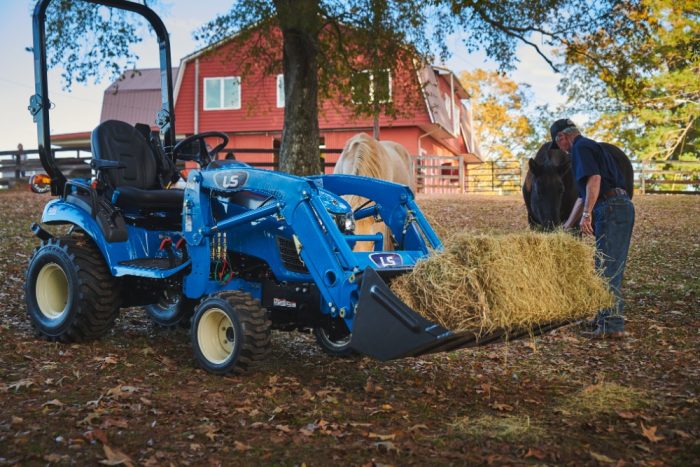

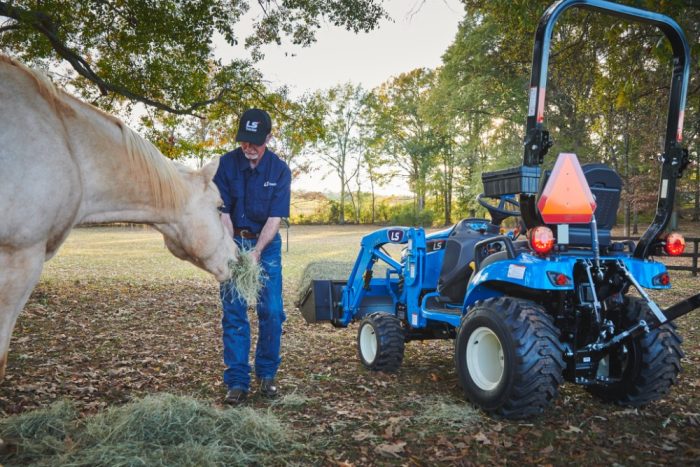

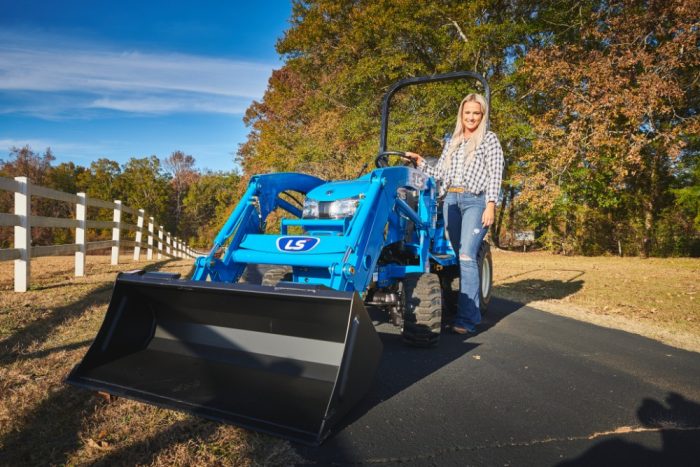

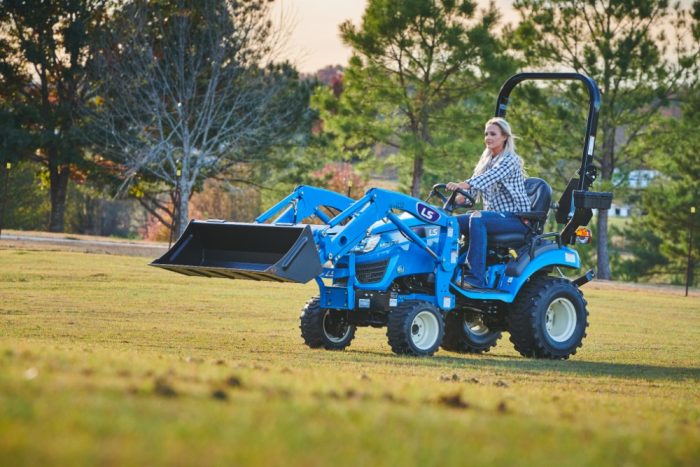

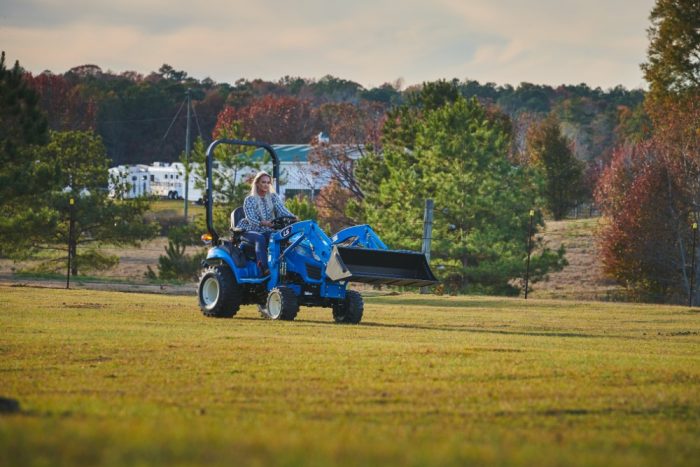

MT122

Key Features

• 4WD (Front Wheel Mechanical Assist) – The MT125-24.7HP Sub-Compact Tractor features 4WD so you can get all your heavy duty pulling with no scuff. Go from 2WD to a 4WD with a simple move of a lever.
• Dual Pedal, 2 Range HST – Our MT125 model features the highly preferred dual pedal. Easier and more comfortable than rocker pedals and smoother switch.
• Independent PT – Easiest PTO to operate that can be turned on or off with a switch.
• PTO Selector Switch – Allows you to select the rear-PTO, mid-PTO or both.

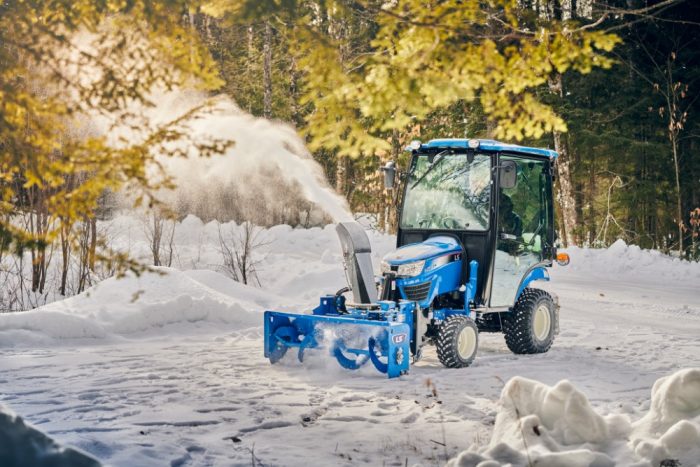

• Standard Mid PTO – 2000 RPM Mid PTO for optional 60” mid-mount mower or 50” front mount snow blower.
• Standard Hydrostatic Power Steering – Ditch the mechanical link—introducing hydrostatic power steering for ultimate flexibility, parts costs, and assemble-ability. This feature makes turning easier, improves control and reduces fatigue.
• Standard Foldable Props – Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.
• 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
• Ergonomically Designed 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
• Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
• Easily Adjust Mowing Height – Adjusting the cutting height for the available 60″ mid-mount mower is as easy as turning a dial.
• Toolbox – Convenient storage keeps tools handy.
• Yanmar Tier 4 Engine and Easy Open Hood – Tier 4 engine that provides reliable power and performance. Includes an Easy Open Hood for quick accessibility for easy maintenance.
• Modern Ergonomic Design – This small chassis compact is ergonomically designed and stylish.
• Comfortable High-Back Seat – Supportive and comfortable seat reduces fatigue and reverses position for backhoe use.

Specifications

Engine

Type	3-cylinder, Indirect-injection, Water-cooled
Model (Tier 4)	Yanmar 3TNV76F
Engine HP (Gross	21.5
PTO HP	15.0
Rated Speed (RPM)	3,000
Displacement (cu. in)	68.0
Fuel Tank Capacity (gal)	6.6
Alternator (V-A)	12V – 40

Drive Train

Transmission Type	Hydrostatic Drive
No. of Speed	2 Ranges
Brakes	Wet, Multi-disc
Steering	Hydrostatic Power Steering

PTO

Type	Independent
Mid PTO	Standard (2500 rpm)
Rear PTO	Standard (540 rpm)

Hydraulic System

Control System	Position
Implement pump (gpm)	4.6
Steering pump (gpm)	2.1
Total flow (gpm)	6.7
Category, 3 pt hitch	CAT I
Hitch Lift capacity, lbs (Hitch end)	970 (728 @ 24”)

Dimension

Overall length (Frame to Link, in.)	97
Overall width with tires (in.)	47
Wheelbase (in.)	56
Height to top of ROPS (in.)	87
Tire Size Industrial Front/Rear	18×18.5 – 10/26 x 12.0 – 12
Tire Size Versa Turf Front/Rear:	18×18.5 – 10/26 x 12.0 – 12

Tire Size

Ag Front / Rear	7 – 14 / 11.2 – 24
IND Front / Rear	27X8.50-15 / 43X16.00-20
Ag Front / Rear	7 – 14 / 11.2 – 24
IND Front / Rear	27X8.50-15 / 43X16.00-20
VT Front / Rear	27X8.50-15 / 43X16.00-20
Turf Front / Rear	25X8.50-14 / 41X14.00-20

Weight

Total weight without ballast (lbs.)

1,433
